Configuring DOAS worksheets

Before submitting an order containing DOAS units to ClimateMaster it is necessary to ensure that all of the units contained on the order have a corresponding entry on a worksheet. ClimateMaster requires the worksheet to enable them to properly configure the unit before it leaves the factory.

To configure a DOAS worksheet, locate it using either of the methods specified in the help topic "Accessing DOAS worksheets" and configure the properties as detailed below.

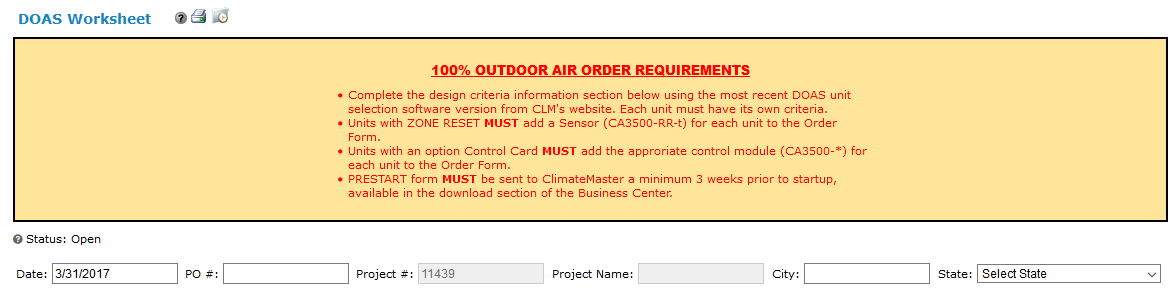

The DOAS header refers to the section of the worksheet that associates the worksheet with a specific project. An example of a new worksheet header is shown in the following figure.

The system automatically fills in the some of the header information from information gathered directly from the project to which the worksheet is related, or from the Solution Center system itself. Below is a detailed list and description of the fields contained in the worksheet header.

Field	Description
Date	The date the worksheet was created
PO #	The purchase order, if any, associated with the worksheet
Project #	This field cannot be changed and is the project number obtained from the project to which the worksheet is associated
Project Name	This field cannot be changed and is the project name obtained from the project to which the worksheet is associated
City	The city, or location of where the units on the worksheet are to be installed or delivered
State	The state of where the units on the worksheet are to be installed or delivered

Enter any of the values desired and when the Save button is clicked the data will be saved along with the worksheet.

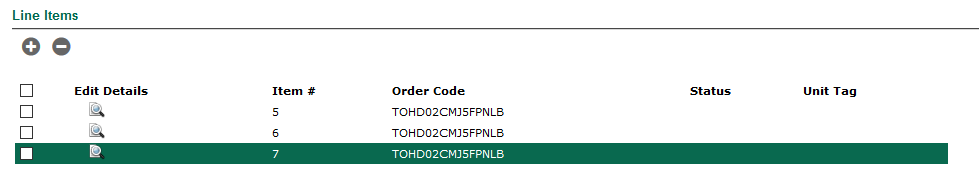

If you created the DOAS worksheet by selecting the line items on the Equipment Schedule page, they will be displayed in the Line Items section of the worksheet page as shown below

The grid displays several columns of information for each DOAS unit. This information is described in the table below.

Column	Description
Check box	Allows the user to select the DOAS unit. Used primarily to delete line items from the worksheet
Edit Details icon	If clicked, displays the details for the DOAS unit selected
Item #	Corresponds to the line item number in the project equipment schedule. Helps identify the unit when there is more than one line item with the same Order Code
Order Code	Displays the unit's order string configuration code
Status
Unit Tag	Displays the unit's tag information, if any

There are two ways to add existing units to a DOAS worksheet. One method is to select the unit from the equipment schedule page and then select the DOAS worksheet. This is described in more detail in the section entitled "Creating new DOAS worksheets". Another method is to click the plus icon

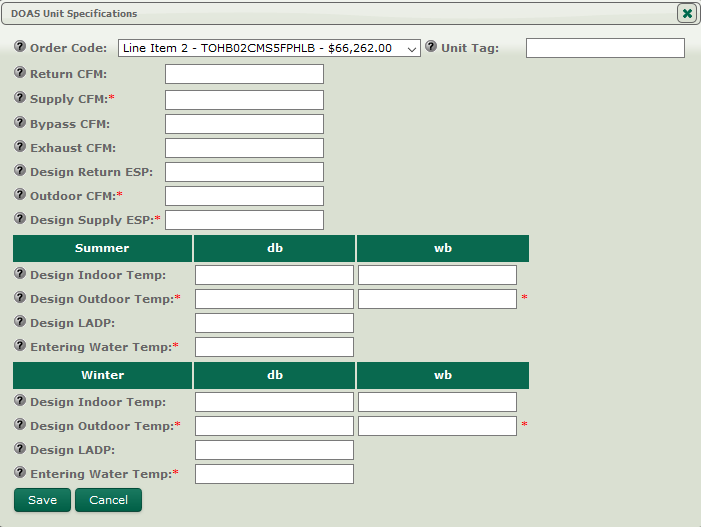

in the Line Items section of the worksheet. This will cause a pop up box to be displayed that will allow the user to select the line item desired and configure the specifications of the worksheet. See the figure below for an example.

The unit that is to be added to the worksheet may be selected from the Order Code drop down list box. After the unit is selected several options may be configured for the unit. The options marked with a red * are required in order to save the specifications to the worksheet. The other parameters are optional.

Beginning with Solution Center version 3.3.55, the DOAS worksheet values that are entered are validated against the following values.

Parameter	Valid Range
Return CFM	0 - 12,500 CFM
Supply CFM (required)	0 - 16,250 CFM
Bypass CFM	0 - 12,500 CFM
Exhaust CFM	0 - 12,500 CFM
Design Return ESP	0 - 2.0 inches
Outdoor CFM (required)	600 - 16,250 CFM
Design Supply ESP (required)	0 - 2.0 inches
Summer Design Indoor Temp (db)	0 - 95 degrees
Summer Design Indoor Temp (wb)	0 - 85 degrees
Summer Design Outdoor Temp (db) (required)	0 - 120 degrees
Summer Design Outdoor Temp (wb) (required)	0 - 100 degrees
Summer Design LADP (Leaving Air Dew Point)	0 - 80 degrees
Summer Entering Water Temperature (EWT)	35 - 105 degrees
Winter Design Indoor Temperature (db)	0 - 95 degrees
Winter Design Indoor Temperature (wb)	0 - 85 degrees
Winter Design Outdoor Temperature (db)	0 - 120 degrees
Winter Design Outdoor Temperature (wb)	0 - 100 degrees
Winter Design LADP (Leaving Air Dew Point)	0 - 80 degrees
Winter Entering Water Temperature (EWT)	35 - 105 degrees

A brief description of the terms can be found by hovering over the question mark icon located next to each line.

Once you have configured the options, click the Save button to save the unit specifications to the worksheet.

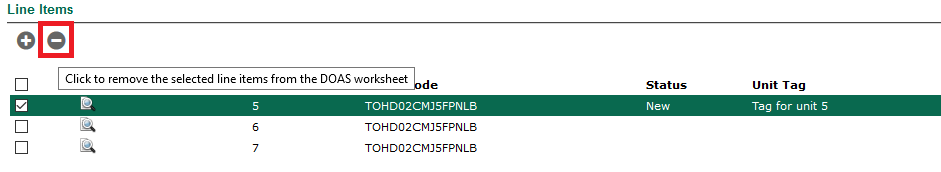

To delete a DOAS unit, click the check box next to the unit and click the minus icon

at the top of the grid. This will remove the line item from the worksheet. NOTE! Deleting the line item from the DOAS worksheet does not remove the line item from the project schedule.
